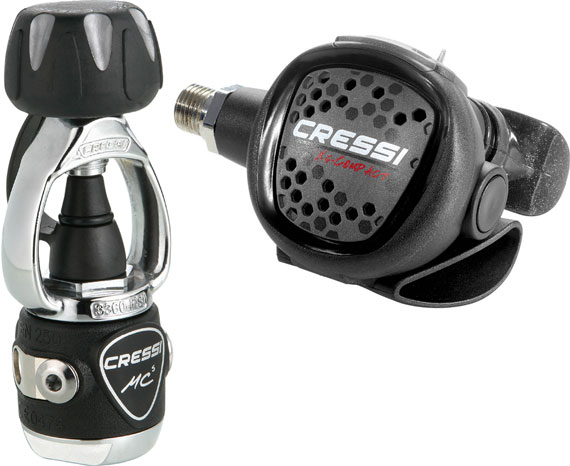

The MC5 hyper-balanced Diaphragm Actuated 1st stage regulator has a lightweight body covered by a protective techno-polymer elastomer shell. The regulator is equipped with three low pressure and one high pressure port. Internally the 1st stage is coated with an anti-friction anti-corrosion material that reduces resistance and allows the critical components to move freely. This makes the components perform and last longer between annual servicing and increases performance.

Research on internal air passages led to incorporating a special assist chamber that lower's the drop of intermediate pressure upon inhalation and has keeps this drop at a minimum, guaranteeing higher performance in any situation. Hyper-balancing allows for an increase of the intermediate pressure at maximum depths and when experiencing low pressure in the Scuba cylinder, offering higher performance at maximum depths and during the ascent phase of the dive.

The all chrome plated marine brass first stage regulator is a balanced diaphragm design which is environmentally sealed. The diaphragm membrane transmits the pressure changes to the internal mechanism eliminating the need for the surrounding water to enter the intricate mechanism. The benefit of this type of first stage design is that none of the internal parts are exposed to contaminants such as salt, sand, chlorine or pool acids. These environmental contaminants cause corrosion and mineral deposits to form on the internal mechanism deteriorating regulator performance.

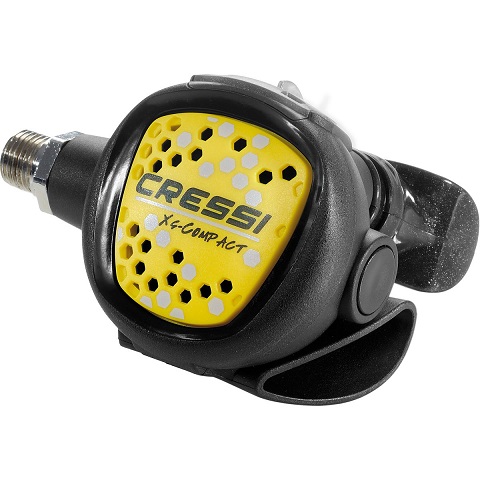

The XS Compact Second-Stage housing is made of durable non-corrosive hi-tech polymers and has a dependable downstream demand valve mechanism. The flow of air is channeled to the mouthpiece by injection, creating a venturi effect enhancing the performance. The 2nd stage comes with a flow deviator that acts on the Venturi effect, with dive/pre-dive adjustment function. Large soft purge cover allows easy clearing of 2'nd stage and a comfortable silicone mouthpiece. The XS Compact MC5 Regulator is lightweight weighing 26.5 oz (750 g) without the hose. The XS Compact MC5 Regulator comes with an owner's manual.

Cressi XS Compact MC5 Regulator Features

• Cressi XS Compact MC5 Regulator:
• Total Weight: 24.2 oz. (686 g)
• Lightweight Regulator Great for Traveling Divers
• 1'st Stage: Cressi MC5
• The MC5 First Sage Hyper-Balanced Diaphragm
• 1 High Pressure and 3 Low Pressure Ports
• Techno-Polymer Shell Protect Body
• Lightweight and Compact Body 19.4 oz. (550 g)
• Self-Lubricating Internal Coating
• Anti-Pressure Drop Pneumatics
• Great Travel Regulator
• 2'nd Stage: Cressi XS Compact
• Reliable Downstream Demand Valve
• Large Soft Purge Cover
• Comfortable Mouthpiece
• 3/8" Thread Hose
• Lightweight and Compact 4.75 oz. (135 g)
• Owner's Manual

Cressi XS Compact MC5 Regulator Specifications

• 1'st Stage Type
• Balanced Diaphragm
• LP Ports
• Three 3/8" Threaded
• HP Ports
• One 7/16" Threaded
• Adjustable 2'nd Stage
• Yes, Venturi Dive/Pre-Dive Switch
• 2'nd Stage Type
• Downstream Demand Valve
• Materials
• First Stage: Chromed Brass, Second Stage: Techno-Polymer Plastic
• Hose Thread
• 3/8"
• Hose Length
• Not Specified by Manufacturer
• Total Weight
• 24.2 oz. (686 g) w/o Hose
• Weight [with packaging]
• 3.1 lb

• • All AmScuD instruments give a very accurate, clear visibility readings and are made from the best quality materials.

  • As such, we stand behind our products to give the utmost user experience.

  • Learning from our over 18 years in the industry, we have sucesfully established both design and materials that is a balanced of functionality, excellent robustness while maintaining a certain cosmetic estathic.

  • Did we tell you that our gauges are 100% Made in Italy? And it is backed by a full 1-year warranty.

  • The AmScuD submersible pressure gauge combined with depth gauge and compass, with an internal Bourdon pressure measuring mechanism, gives you clear information on the gas contents of your cylinder.

  • Dial range is stated in metric standard (BAR) from zero to 400 Bar while the depth gauge will show a METER unit with 1 meter increments.
  • Dial face is designed with ultra-clarity in mind by being uncluttered, with large black figures on a luminous background giving a long phosphorescent effect. We also color-indicator for a better idea of what states you are in.
  • This makes viewing as easy as possible, even in poor visibility conditions.

  • Our gauge case is made from nickel plated brass
  • The dial window is made of highly shock resistant material (anti-splinter polycarbonate). 400 BAR/5,800 PSI dial gauge for your mission critical applications.
  • Elasto-Polimer housing to ensure reliability while maintaining its function and esthathics.
  • Over-pressure capsule fitted in the back of the module to prevent the screen from exploding in the unly event of the internal mechanism failing.
  • Our exclusive Dual-Recoil® system located both in depth and pressure gauge. Un other gauges in the market, which gauge will fail in case of internal coil is failing, our gauges are designed to have a backup coil.
  • NITROX compatible with Oxygen Cleaned environment, Viton O-Rings on all parts (swivel + HP port) and Christo-Lube lubricant.
  • 30% longer phosphorecent effect.
  • Color coded indicator with 10-bar increments (pressure) and 1-meter increments (depth)
  • Improved swivel umberella design with chanelled o-ring gutter./16" HP port connection.
  • We designed an angle for the gauge so it is easy to view while maintaining its shape for durability (in case of drop/shock).
