**Garansi kompressor 1 Tahun/Compressor Warranty 1 Year **
Ketentuan sebagai berikut / The following conditions:
1. Jika ada kesalahan produksi dari pabrik / defect sebagian part saja, bukan karena kerusakan pemakaian / pemasangan oleh konsumen (kesalahan phase / voltase / vanbelt putaran terbalik / tidak ada oli sebelum penggunaan / kurang oli sebelum penggunaan.
1. If there is an error in production from the factory / defect some parts only, not because of damage when using / installation by the consumer (phase / voltage / vanbelt error reversed / no oil before use / less oil before use.
2. Garansi tidak termasuk biaya ongkos pengiriman pulang pergi dan harus dikirim langsung ke toko cabang Surabaya atau Denpasar untuk kami periksa terlebih dahulu.
2. The warranty doesn't the costs of round-trip shipping and must be sent directly to the Surabaya or Denpasar branch stores for our inspection first.
NOTE :

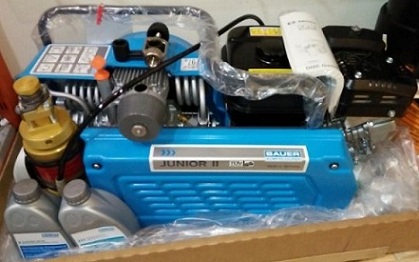

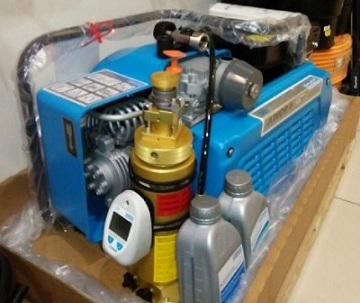

- Setiap kompressor harus dipacking kayu untuk pengiriman. Biaya tambahan untuk packing kayu akan dikenakan ke pembeli.
- Packing kayu akan menambah berat 20-25kg per kompressor (100 l/min)
- Dengan adanya packing kayu, maka biaya ekspedisi pengiriman akan bertambah karena lebih berat. Packing kayu penting untuk menjaga kompressor tidak rusak ketika perjalanan.

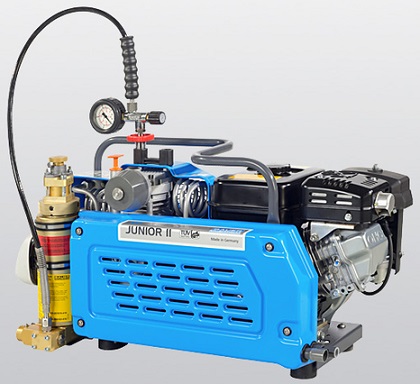

(Bensin Gasoline 100 Liter / minute, German Made)
- Salah satu kompressor best-selling kami di kelas 100 l/min
- Cocok untuk resort, penelitian laut yang berpindah-pindah, untuk diatas kapal, SAR, Pemadam kebakaran, pelatihan di tempat yang remote
- Terdapat pilihan untuk bensin
- The most compact, highly mobile unit of our diving compressor range.
- Due to its toughness and reliability the JUNIOR with more than 30.000 sold units has become a global classic.
- The JUNIOR II's small size and refined compressor technology appeal especially to ambitious sports divers, who want a safe and reliable source of pure air, even in remote dive locations. The light weight and compact unit is portable by a single person and fits in every boot.
- This compact BAUER diving unit has been manufactured using top quality components, upholding BAUER's core characteristics of reliability and safety.
- The even more compact design and a variety of smart improvements make the JUNIOR II an even better value for money for committed sports divers.
- The new JUNIOR II is a product based on more than 60 years of experience and strict BAUER Quality Management according to DIN EN ISO 9001.
- Our patented TRIPLEX® filter cartridge is a safe source of pure breathing air according to DIN EN 12021 (formerly DIN EN 3188).
- TRIPLEX® filter cartridge: P21 filter with modifications (condensate outlet, modified filter bottom, shorter housing and standard safety valve).
- Condensate drain: manual drain operated by two screw knobs on the filter housing and one on the separator after the second stage. These drains have been placed at a height that leaves enough space for a condensate container underneath.
- All Compressor Versions: L-shaped frame with special base plate for the compressor block and motor allowing fast and simple belt tensioning, V-belt drive (SPZ belt), Plastic fan shroud with integrated holders for the telescopic intake tube, Steel carrying handle fixed to the base plate allows easy transport by two people (rails on both sides of the unit), Rubber anti-vibration feet, Integrated fill adapter brackets for two hoses with DIN and ISO connections.
1) available with switch over device 330 / 225 bar or 225 bar/330 bar alternatively

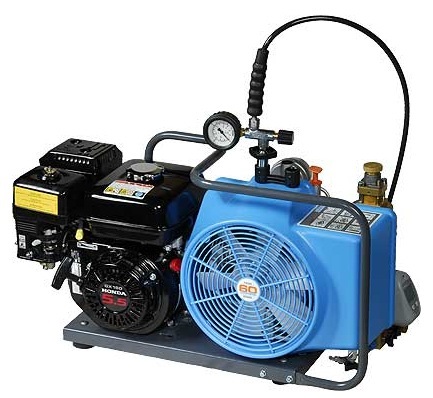

2) standard unit with integrated telescopic intake tube and Subaru four-stroke engine
* cylinder filling from 0 to 200 bar
** filling rate for 1 litre cylinder capacity from 0 to 200 bar
Technical Data
|
Model
|
Drive
|
FAD
|
RPM
|
Filling
rate
|
Drive
|
Filter
System
|
Dimensions
approx. cm
|
Weight
net
|
max. 330 bar 1)
|
l/min *
|
min-1
|
min **
|
kW
|
HP
|
TRIPLEX®
|
L
|
W
|
H
|
approx. kg
|
JUNIOR II - B
|
4-stroke petrol 2)
|
100
|
2300
|
2,0
|
4,0
|
5,5
|
P21
|
78
|
34
|
42
|
44
|
JUNIOR II - E
|
three-phase
|
100
|
2300
|
2,0
|
2,2
|
3,0
|
P21
|
66
|
36
|
42
|
46
|
JUNIOR II - W
|
single-phase
|
100
|
2300
|
2,0
|
2,2
|
3,0
|
P21
|
66
|
39
|
42
|
46
|
Recommendation OIL (Synthetic) Changing :
25 hours, 50 hours, 250 hours ... etc.
**NOTE : The changing of oil is very important and also maintain at the right level. Most wear and breakdown is cost by dirty oil Or not enough oil, causing the cylinders and pistons does not get a proper lubrication, heat builds up, and the problem will start to arise.
(AVAILABLE : GASOLINE & ELECTRIC 1 PHASE/ 3PHASE
AVAILABLE SAFETY VALVE : 225 & 330 BAR)
