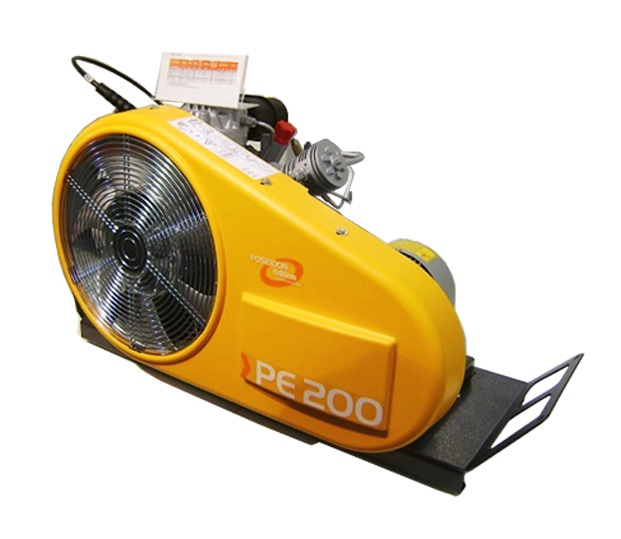

Compressor Bauer Poseidon PE200 (Electric)

Compressor Bauer Poseidon PE 200 (Electric)

**Garansi kompressor 1 Tahun/Compressor Warranty 1 Year **

Ketentuan sebagai berikut / The following conditions:

1. Jika ada kesalahan produksi dari pabrik / defect sebagian part saja, bukan karena kerusakan pemakaian / pemasangan oleh konsumen (kesalahan phase / voltase / vanbelt putaran terbalik / tidak ada oli sebelum penggunaan / kurang oli sebelum penggunaan.

1. If there is an error in production from the factory / defect some parts only, not because of damage when using / installation by the consumer (phase / voltage / vanbelt error reversed / no oil before use / less oil before use.

2. Garansi tidak termasuk biaya ongkos pengiriman pulang pergi dan harus dikirim langsung ke toko cabang Surabaya atau Denpasar untuk kami periksa terlebih dahulu.

2. The warranty doesn't the costs of round-trip shipping and must be sent directly to the Surabaya or Denpasar branch stores for our inspection first.

PE-TE – The transportable compressor units with optimised equipment for use in vehicles and on ships

BAUER PE-TE breathing air compressor with larger filter system and control
Uncompromising on quality: With a robust compressor block and piston rings made from wear-resistant special plastic
Durable and robust: Thanks to oil cooling in the final compressor stage. For low wear and long service life
Ideal for use at sea: Intercoolers and aftercoolers made from rust-free stainless steel. For high corrosion resistance
Reliable lubrication: Thanks to low-pressure oil pump with oil filter. For effective lubrication and long oil change intervals
POSEIDON EDITION units combine core components from BAUER KOMPRESSOREN in uncompromising quality whose ability to perform is beyond doubt with equipment that has been optimised for its intended purpose. The familiar durability, high safety and clean air quality conforming to international norms and standards naturally also comes as part of the package.
The PE-TE breathing air compressor series strikes a particularly good balance between price and free air delivery. Their integrated oil pump supports angles of inclination of up to 15 degrees, making this series of units particularly suitable for use on ships or for installation in vehicles.
Thanks to their compact dimensions, the units are very easy to transport and will fit into the boot space of many cars.

**PE-TE compressor series, up to 330 bar, 200 – 300 l/min, high-pressure compressors for compressing air and breathing air**
Type designation	Effective free air delivery ¹	Drive		Filter system	Net weight	Dimensions L × W × H
	l/min	Motor	kW		approx. kg	cm
PE 200-TE	200	Three-phase motor, 400 V, 50 Hz ²	4.0	P 21	120	110 × 50 × 57
PE 250-TE	250	Three-phase motor, 400 V, 50 Hz ²	5.5	P 21	130	110 × 50 × 57
PE 300-TE	300	Three-phase motor, 400 V, 50 Hz ²	7.5	P 21	140	110 × 50 × 57

¹ Measured with cylinder filling from 0 to 200 bar, ±5 %
² Other voltages/frequencies available at additional cost

NOTE :

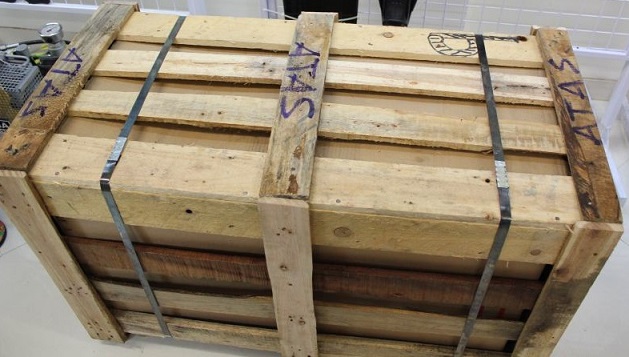

Setiap kompressor harus dipacking kayu untuk pengiriman. Biaya tambahan untuk packing kayu akan dikenakan ke pembeli.
Packing kayu akan menambah berat 20-25kg per kompressor (100 l/min)
Dengan adanya packing kayu, maka biaya ekspedisi pengiriman akan bertambah karena lebih berat. Packing kayu penting untuk menjaga kompressor tidak rusak ketika perjalanan.

Recommendation OIL (Synthetic) Changing :

25 hours, 50 hours, 250 hours ... etc.

**NOTE : The changing of oil is very important and also maintain at the right level. Most wear and breakdown is cost by dirty oil Or not enough oil, causing the cylinders and pistons does not get a proper lubrication, heat builds up, and the problem will start to arise.
