PK3554 - Technical BCD Transplate Classic XT Diverite (60Lb)

TECHNICAL BCD DIVERITE TRANSPLATE STAINLESS (L) CLASSIC XT WING (60 LB) - BLACK (NOT INC TANK BELT STRAP)

Product Number : PK3554

EXP WING ? / XT WING ? CLICK HERE!>>>> userfiles/file/DIVERITEHELP.pdf

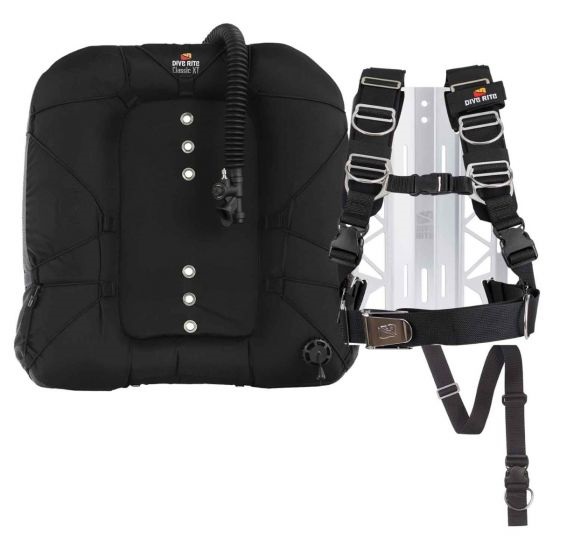

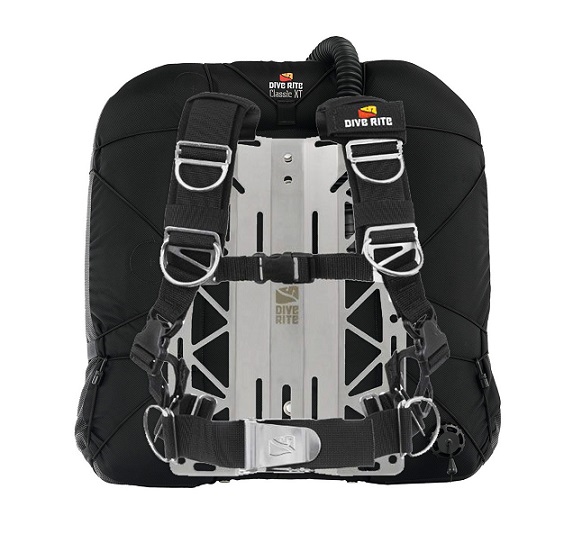

DIVERITE TRANSPLATE XT CLASSIC WING PACKAGES

Includes:

Transplate XT Harness
XT Lite SS Backplate
Classic Xt Wing W/ Lp Hose
Crotch strap
Owner Manuals

BLADDER :

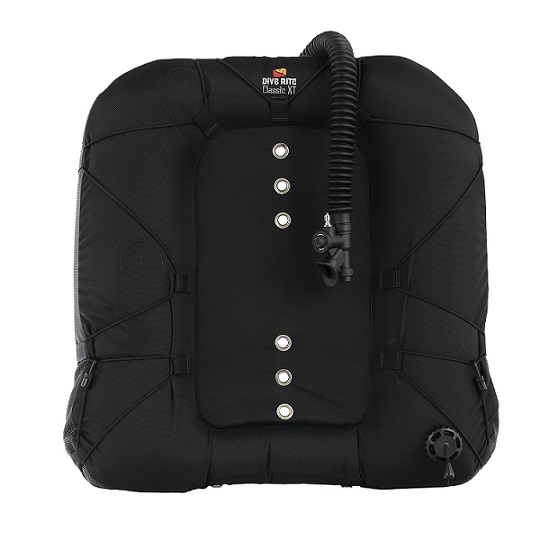

The Classic XT Wing (model BC 5400) is the workhorse of our series of wings. With a history dating back to our early days, the Classic Wing has been dived and proven many times over, leading the way for divers to penetrate deep into caves, explore shipwrecks, or cruise comfortably deep on an ocean ledge. Designed solely for double tanks and with the option of a single or dual bladder, the Classic XT provides 60 lbs. (27.2 kg) of lift, which can accommodate two 104 ft3 (17 L) back mounted cylinders and two 80 ft3 (11L) stage bottles.

Supporting heavy doubles and stage bottles is one thing, but being able to properly balance and stabilize that amount of heavy gear for proper trim while swimming is the Classic XT really shines. The donut-shape design provides excellent stability and control while diving by keeping a volume of inflation on the top, sides, and bottom. This, along with an optional integrated Gusset Control System (GCS) that reduces “taco” effect, promotes effective streamlining and puts buoyancy it is most needed (throughout the torso supporting the weight of the tanks) for superior horizontal trim. The GCS is not a bungee wing because it does not restrict airflow; instead, the GCS promotes added streamlining and buoyancy control, yet allows the wing to inflate to its full capacity.

Designed to handle the extremes, the Classic XT is built using our rugged SuperFabric® brand technology XT material that creates an armor-clad outer shell that is impervious to damaging pinches and cuts, along with a 1680 ballistic nylon diver's side panel. Inside the SuperFabric® outer shell a heavy-duty, 210 denier nylon laminated bladder enhances the ruggedness and superior performance of the Classic XT.

The Classic XT comes equipped with a choice of a 12- or 16-inch elbow or a 16-inch rapid exhaust (pull dump) along with an appropriate low-pressure inflation hose. It also has two sets of marine-grade 316 stainless steel grommet mounting holes for attaching the wing to a harness and set of tanks.

As a part of our modular BCD system, the Classic XT can be matched with either a TransPac® XT, Transplate, or any metal back plate and webbing harness.

The Classic XT is backed by our WORRY-FREE LIFETIME GUARANTEE and are made exclusively in the U.S.A.

TECHNICAL DETAILS

Outer bag: SuperFabric® brand technology outer shell and 1680 ballistic nylon diver’s side panel (extremely resistant to pinches and punctures)
Inner bladder: 210-denier nylon laminated (highly resistant to pinches and punctures)
Wing Gusset Control system for streamlining
Lift: 60 lbs. (27.2 kg)
Cylinder accommodation: Two 104 ft3 (17 L) back mounted cylinders and two 80 ft3 (11L) stage bottles
15-, 22-, or 27-inch (38, 55.8, or 68.5 cm) LP inflator hose
16-inch rapid exhaust (pull-dump) or 12- or 16-inch elbow
Mounting: Two sets of marine-grade 316 stainless steel grommet holes are used to attach wing to harness and set diver trim
Urethane flanges: Welded in place, which make it easy to switch out corrugated hoses and over pressurization valves without tools
Weight: 3 lbs. (1.36 kg)
Size: 24-in. H x 26-in. W (60.9 cm x 66.0 cm)
Made in the USA

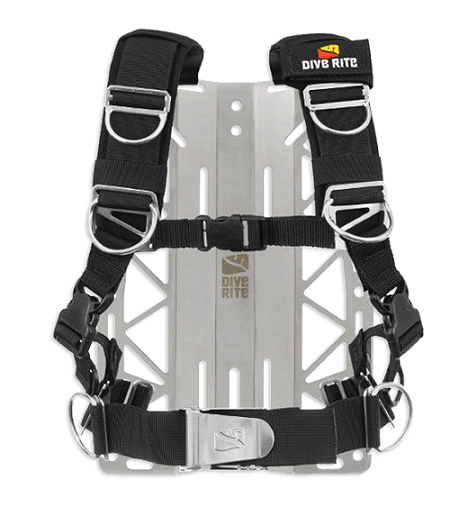

TRANSPLATE XT HARNESS

A hybrid harness designed for divers who want the support of a backpack-style harness for better weight-load distribution, yet wish to dive a hard metal backplate. Designed a mountaineer's backpack, the TransPlate harness disperses weight across the hips and back, minimizing shoulder strain. When used with a 6-pound steel backplate, divers can remove or minimize weight pockets. Adjustable straps adapt to a wide variety of exposure suits and means easy donning and doffing. The modular design allows for customization with a wide variety of pockets and accessories. Available in sizes Medium thru XXL. Made in the U.S.A.

TECHNICAL DETAILS XT HARNESS

Shoulder pads constructed of 1000 denier ballistic nylon fabric for tear and abrasion resistance. Two-inch (50mm) nylon webbing rated at 7,000 lbs breaking strength forms the shoulder straps and waist strap.
Four 2-inch D-rings on each shoulder strap are slightly bent for improved access and placement can be adjusted. Note: Size Medium has only one 2-inch D-ring per shoulder strap due to space limitations.
Marine Grade 316 stainless steel hardware is used throughout including: (2) bent D-rings on each shoulder strap(except MED that has only 1 bent D-ring per shoulder) and (2) waist D-rings, XT chest plates, belt buckle, cam strap buckles, and side plates.
Shoulder straps feature pivot rings at chest level for comfort, fit, and load distribution.
Acetyl resin engineered plastic quick release buckles on shoulders for easy doff and don.
One-inch nylon webbing rated at 2,200 lbs breaking strength and a Delrin 1-inch quick release buckle are used for a chest strap.
Marine grade stainless steel base plates allow for proper placement of shoulder straps. Plates can be moved forward or backward on the waist strap to get the best fit and performance.
Med: 2lbs 7oz (1.10kg), Lg:2 lbs 8 oz (1.16kg), XL:2 lbs 9 oz (1.16kg), XXL:3 lbs (1.36kg)
Made in U.S.A.

TECHNICAL DETAILS XT STAINLESS BACKPLATE

Material: 16 Guage 316L Stainless Steel
Weight: 2lb 9.4oz
Dimensions:
10.5″ (26.7cm)(widest point) x 15″ (39.4cm)
1.25″ (3.2cm) depth (with contour)
