Regulator Legend ACD Aqualung

The Legend Supreme shares the same features and performance as the Legend LUX and Legend LX with one notable exception. Instead of the MBS dual control valve, the Legend offers a venturi switch.

First Stage:

Auto Closure Device (ACD) - keeps corrosive water out of the first stage inlet by automatically closing as the Legend is removed from the cylinder valve
This prevents internal lubrication from washing away
Safer for elevated percentages of oxygen
Unique over-balanced, diaphragm design results in superior performance at depth
2 HP ports and 4 MP ports are angled for optimum hose routing
An environmental dry system keeps water out of the main spring chamber thus preventing ice buildup and keeping silt and contamination out

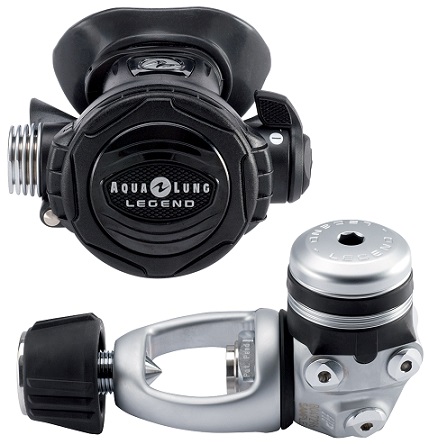

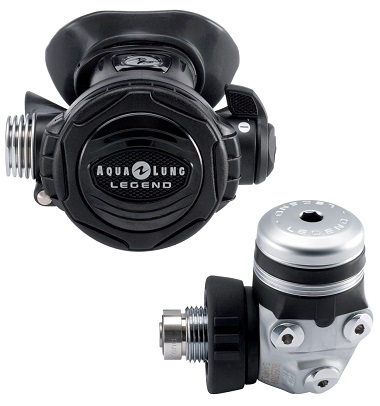

Available in your choice of yoke or DIN connectors
Compatible with up to 40% O2 right out of the box

Second Stage

Pneumatically-balanced second stage results in smooth, easy breathing
A venturi switch helps prevent freeflow at the surface and when the regulator is out of the diver’s mouth
The opening effort is preset in a fixed position so the diver doesn’t have to worry about adjusting the regulator during the dive
The ComfobiteTM mouthpiece virtually eliminates jaw-fatigue heat exchanger (patented) which surrounds the valve mechanism, dissipates the cold caused by gas expansion while drawing in the warmth of the ambient water
The ergonomic exhaust tee channels the exhaust bubbles out of your field of vision. The design also contributes to a reduction in exhalation effort
Attached to a 29” braided Aqua Flex hose. These hoses are lightweight and extremely pliable which eliminates any tugging on the mouthpiece
In addition to the first stage environmental dry system and the second stage heat exchanger, which are found on all models and provide excellent freezing resistance, the Supreme Versions are:

Specially adjusted to resist freezing

Equipped with a lip shield on the second stage to keep lips warm

Number of models	4- Legend yoke, Legend DIN, Legend Supreme yoke, Legend Supreme DIN
Type of first stage	Over-balanced diaphragm design, environmentally sealed
First stage weight yoke / din (grams)	882 / 668
First stage length (mm)	74.7
Auto-Closure Device (ACD)	YES
First stage MP chamber	Enlarged, symmetrical, all ports provide equal access
Number of HP ports	2
Number of MP ports	4
Environmental Dry Kit	Standard
First stage exterior	Chrome over marine brass
First stage handwheel	Triangular shape with oversized soft grip ribs, auto-drain
First stage dust cap	Redesigned so it will not inadvertently open the auto-closure device (ACD)
Type of second stage	Pneumatically balanced
Second stage weight - (grams)	210
Second stage diameter (cm)	6.57
Controls	Venturi switch
Breathing resistance	Preset
Mouthpieces	2 - Comfobite installed, standard with bite wings in box
Front cover	Co-molded w/ limited range to control purge flow rate
Exhaust tee	redesigned for better bubble dispersion and easier exhalation
Lip shield	Supreme model only
Heat Exchanger for freezing resistance	YES
Hose type	29" braided AquaFlex hose
Hydrodynamic openings	Lateral
Overall work of breathing (WOB) scores	Avg. 0.65 joules/liter
Nitrox compatible	Yes to 40% O2 when new, out of the box
