VHF Marine Transciever M200 ICom

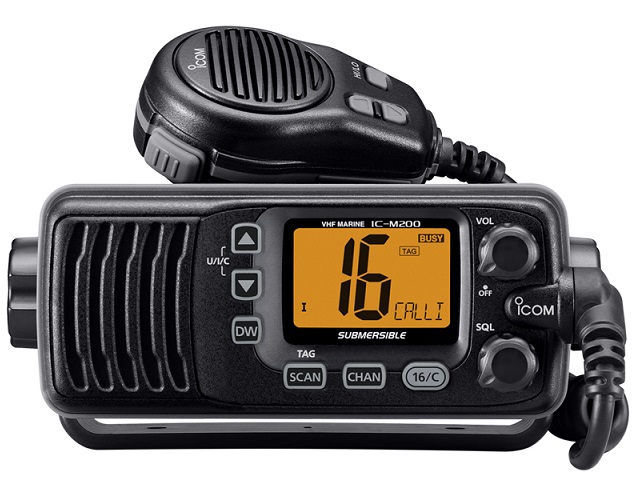

IC-M200 - VHF MARINE TRANSCEIVER ICOM M200

“Made in Japan” Quality, Still the world’s benchmark for production quality.
Compact and IPX7 Submersible Body, Withstands 1m depth of water for 30 minutes.
Powerful Front Mount Speaker, Delivers loud and intelligible audio even in noisy maritime environments.
Class Leading Receiver Performance, No compromise in operating fundamentals (75dB typical IMD and selectivity).
Large Easy-to-see LCD, Large (WxH: 43x27mm) LCD shows essential infromation clearly with 4-step backlighting.
Dualwatch and Tri-watch Function, Monitors CH 16 and/or call channel, while using another channel.
Favorite Channel Function, Offers quick channel selection from the microphone up/down button.
AquaQuake™ Draining Function, Water free speaker grill for optimal audio at all times.

Other features :

General Features :

		IC-M200
Frequency range	Tx	156.025–162.000MHz
	Rx	156.025–162.025MHz
Usable channel groups		INT, USA, CAN channels
Type of emission		16K0G3E (FM)
Power supply voltage		13.8V DC nominal (11.7V–15.9V DC)
Current drain	Tx (at 25W output)	5.5A (Maximum)
	Rx (Maximum audio)	1.5A (Maximum)
Operating temperature range		–20°C to +60°C; –4°F to +140°F
Antenna impedance		50Ω
Dimensions (W×H×D) (Projections not d)		153×67×133 mm; 6.0×2.6×5.2 inch
Weight (approximately)		790g; 1.7lb

TRANSMITTER

Output power	25W (High power) 1W (Low power)
Modulation	Variable reactance frequency modulation
Max. frequency deviation	±5kHz
Frequency stability	±5ppm
Spurious emissions	Less than –70dBc (High power) Less than –56dBc (Low power)
Adjacent channel power	More than 70dB
Audio harmonic distortion	Less than 10% (at 60% dev.)
Residual modulation	More than 40dB

RECEIVER

Intermediate frequency	1st	21.7MHz
	2nd	450kHz
Sensitivity		–14dBμ typ. (at 12dB SINAD)
Squelch sensitivity		Less than –10dBμ
Adjacent channel selectivity		75dB typical
Spurious response		75dB typical
Intermodulation		75dB typical
Hum and noise		More than 40dB
Audio output power		4.5W typical (at 10% distortion with a 4Ω load)

Measurements made in accordance with TIA/EIA 603. All stated specifications are subject to change without notice or obligation.

Applicable U.S. Military Specifications

Also meets equivalent MIL-STD-810-C, -D, -E and -F.

Applicable IP Rating

Ingress Protection Standard
Water	IPX7 (Waterproof protection)
